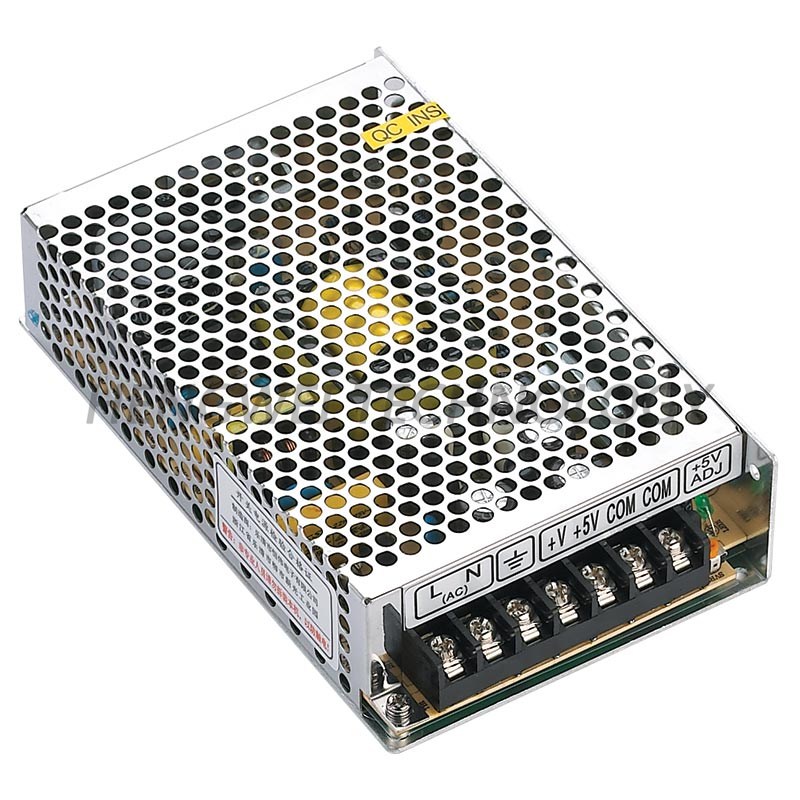

Q-60W series normal quad switching power supply

Features:

·universalACinputrange

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

Q-60B

output

DC voltage

CH1:+5V

CH2:+12V

CH3:-5V

CH4:-12V

Voltage tolerance

±2%

±6%

±5%

±5%

Rated current

5.5A

2A

0.5A

0.5A

Current range

0.8~5.5A

0.4~2A

0~0.5A

0~0.5A

Rated power

60W

Ripple&noise

80mvp-p

120mvp-p

80mv

120mvp-p

DCvoltage ADJ.range

CH1:-9%~+10%

input

Voltage range

90~264VAC,127~373VDC

frequency

47~63HZ

AC current

1.8A/115VAC,0.9A/230VAC

efficiency

71%

Inrush current

Cold start current25A/115VAC,50A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

CH1:115%~135%

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storagetemp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance to UL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

159*97*38mm(L*W*H)

Weight/packing

0.5kg/45pcs/23.5kg/0.041m³/1.45CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
