D-50W

·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

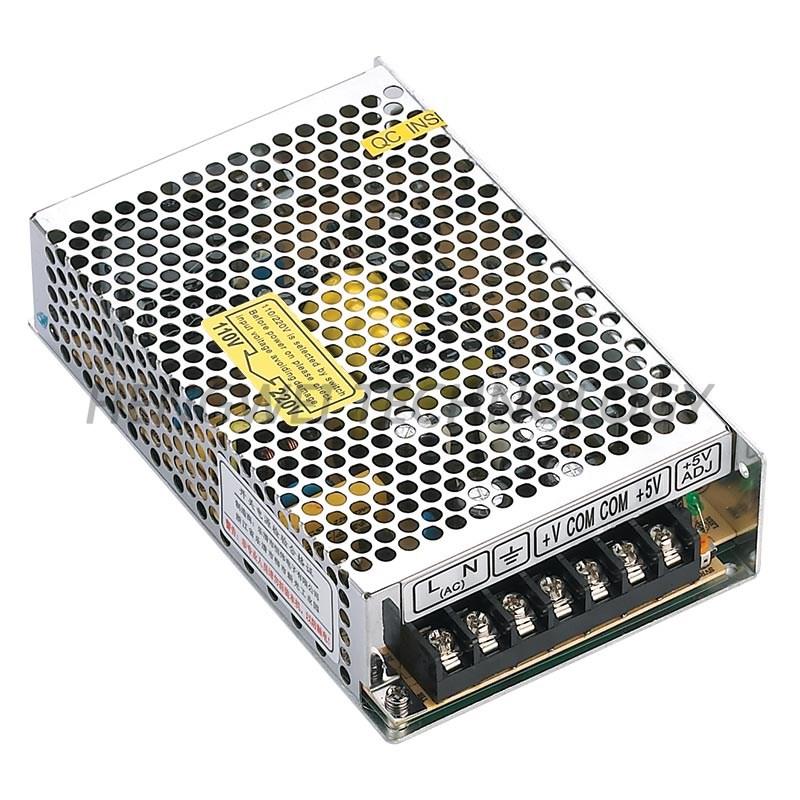

D-50W series normal dual switching power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

D-50A

D-50B

D-50C

output

DC voltage

CH1:5V

CH2:12V

CH1:5V

CH2:24V

CH1:12V

CH2:24V

Voltage tolerance

±2%

+4%~-8%

±3%

+6%~-8%

±3%

+6%~-8%

Rated current

6A

2A

4A

1.5A

2A

1.2A

Current range

0.8~6A

0.3~2A

0.8~4A

0.2~1.5A

0.5~2A

0.2~1.2A

Rated power

54W

56W

52.8W

Ripple&noise

80mvp-p

100mvp-p

80mvp-p

120mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

CH1:-9%~+10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

1.3A/115VAC,0.65A/230VAC

efficiency

73%

75%

77%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150start over load protection

protection type :part layer type current limit,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

159*97*38mm(L*W*H)

Weight/packing

0.52kg/45pcs/24kg/0.041m³/1.45CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
