HS-40W

You are here: Home » Products

HS-40W

·Universal AC input range
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

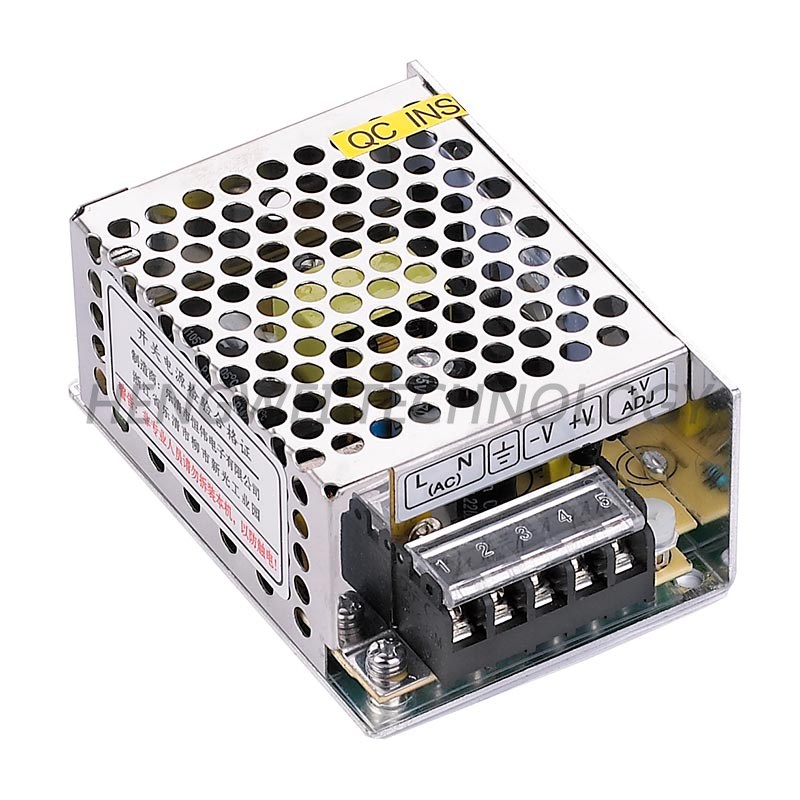

HS-40W series compact single switching power supply

Features:

·Universal AC input range

·Small volumelow weighthigh efficiency

·Protections:short circuit/over load/over voltage/over temp

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

HS-40-12

HS-40-15

HS-40-24

output

DC voltage

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

Rated current

3.4A

2.8A

1.7A

Current range

0~3.4A

0~2.8A

0~1.7A

Rated power

40.8W

42W

40.8W

Ripple&noise

120mvp-p

120mvp-p

150mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

input

Voltage range

90-264VAC235~373VDC

frequency

47~63HZ

AC current

0.55A/230VAC

efficiency

78%

78%

80%

Inrush current

Cold start current 30A/230VAC

Leakage current

< 1mA/240VAC

protection

overload

Rated output power115%~135% start over load protection

protection type:hiccup modeauto-recovery after fault condition is removed

over voltage

Rated output power145%170%

protection type:hiccup modeauto-recovery after fault condition is removed

over temp

When temperature of transistor inner node is over150,Start over temp protection

protection type:hiccup modeauto-recovery after temperature become normal

environment

Working temp,humidity

-10~+6020%~90%RH

Storage temp,humidity

-20~+8510%~95%RH non-condensing

Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance toUL1012

EMC standard

Compliance to EN55022CLASSA

others

Dimension

84*58*38mm(L*W*H)

Weight/packing

0.17kg/80pcs/14.5kg/0.024m³/0.87CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
