HS-10W

·universal AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

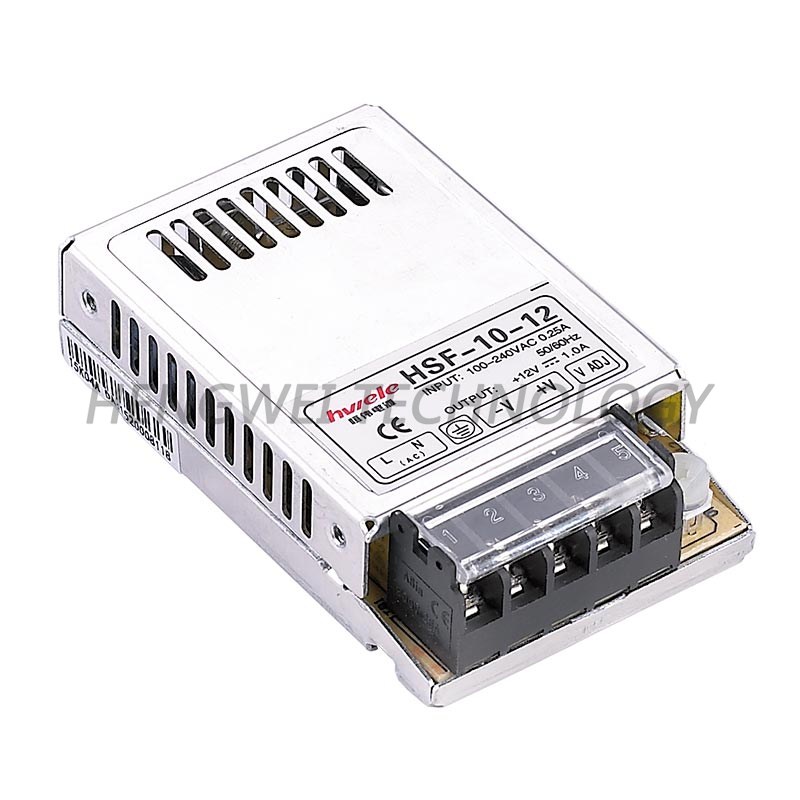

HSF-10W series compact single switching power supply

Features:

·universal AC input

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage/over temp

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

HSF-10-5

HSF-10-9

HSF-10-12

HSF-10-15

HSF-10-24

output

DC voltage

5V

9V

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

±1%

±1%

Rated current

2A

1.1A

1A

0.7A

0.5A

Current range

0~2A

0~1.1A

0~1A

0~0.7A

0~0.5A

Rated power

10W

9.9W

12W

10.5W

12W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

input

Voltage range

90~264VAC,125~373VDC

frequency

47~63HZ

AC current

0.25A/115VAC,0.15A/230VAC

efficiency

76%

78%

79%

79%

81%

Inrush current

Cold start current15A/115VAC,30A/230VAC

Leakage current

< 0.25mA/240VAC

protection

overload

Rated output power115%~135% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

12.6~14.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

protection type:hiccup mode,auto-recovery after fault condition is removed

Over temperature

When temperature of transistor inner node is over150℃, start over temperature protection

protection type:hiccup mode,auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

78*48*21mm(L*W*H)

Weight/packing

0.08kg/200pcs/17kg/0.024 m³/0.87CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
